The use of dust control mats or adhesive mats has proven to be an ideal aid for cleaning shoe soles and trolley wheels in controlled areas and cleanrooms.
Whether in the semiconductor, pharmaceutical or food industry, adhesive mats are used as a useful dust barrier and thus connect the grey room with the clean room.
You can choose between permanently adhesive dust control mats or disposable adhesive film mats. The adhesive strength of both models is set so that only dust and other particles stick.
With the permanent adhesive dust control mat, the surface is cleaned with a sponge and a soap solution and then the surface is wiped dry with a rubber scraper. With adhesive film mats, you can simply and effortlessly peel off the soiled film when the adhesive strength decreases. The new film is immediately available to you. Disposable cleanroom mats avoid time-consuming cleaning and are an inexpensive alternative to reusable mats.
Customised sizes are also available on request. Please contact us!

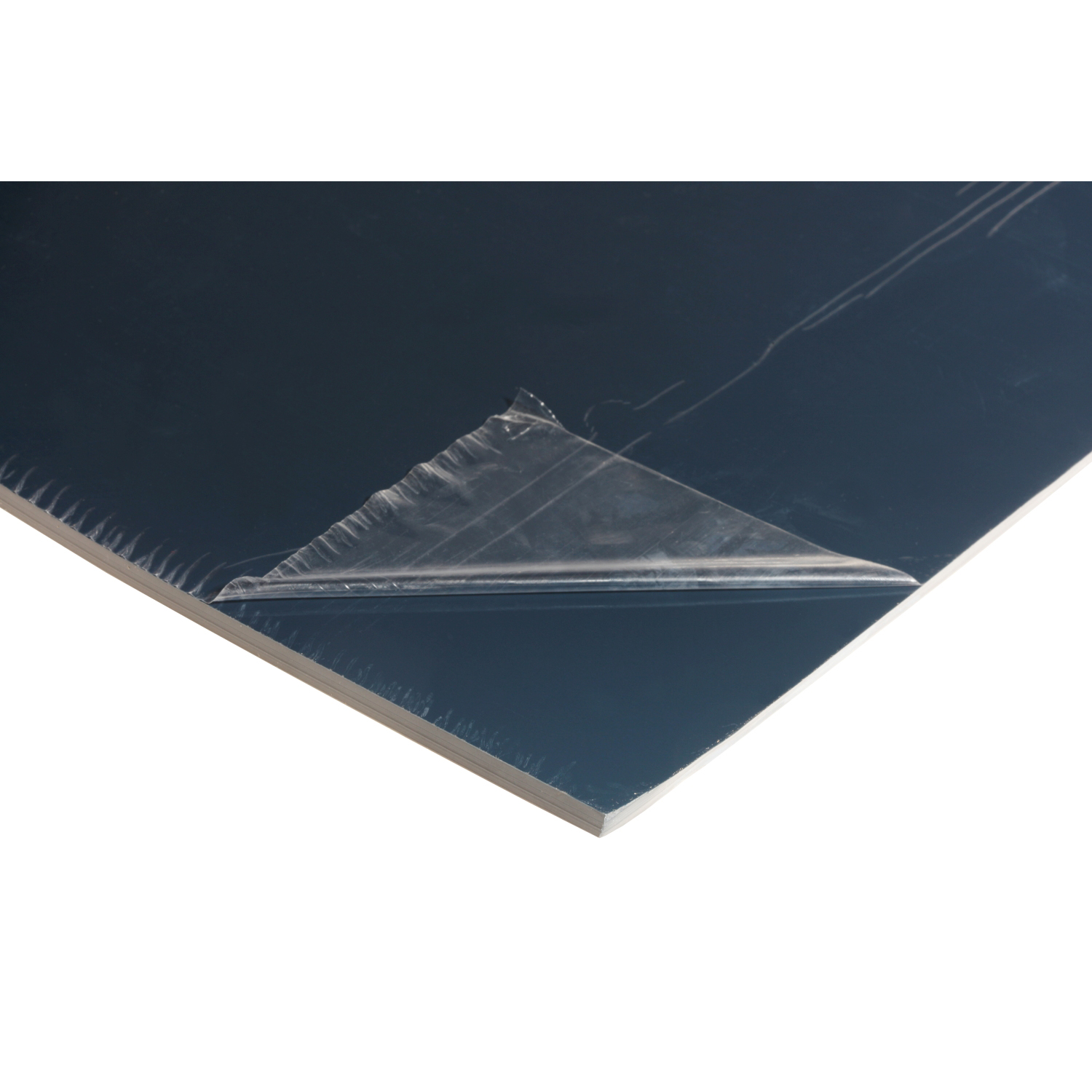

Permanent Sticky Mat SBM
The SBM dust control mat is made of permanently adhesive material without glue or impregnation and is laid loose. The stickiness is a permanent property of the material. The mat is easy to clean. Treat with a sponge and soap solution and then pull dry with a rubber scraper. Can be treated with standard disinfectants. The material does not release any plasticisers or undesirable chemical substances. No fixings are required. Simply place on a clean floor. The perfect connection from the grey room to the clean room. Specification Material: Surface active polymer Colour: Blue (RAL 5001) Thickness: 3 mm or 6 mm Dimensions: 120 cm x 60 cm or 100 cm x 100 cm Packaging: 1 piece per carton Areas of Application: Semiconductor and electronics manufacturing Pharmaceuticals & chemicals Aerospace & nuclear energy Military research Hospitals, laboratories and research centers Ideal for access to ultra-clean and clean rooms Characteristics Permanently adhesive – no glue, no consumables Maximum particle retention for sensitive areas Easy to clean No outgassing (does not release plasticizers or other chemical substances) High chemical and thermal resistance Slip-resistant and noise-reducing Easy to install
Permanent Sticky Mat SimStep®
Our new SimStep permanent adhesive mat is a high-performance decontamination mat with outstanding properties. Full service - for you right from the start. Consultancy, planning, project management. Our specially trained installation team will support you with your SimStep project right through to professional installation. If you wish, we can also regularly check the performance of the installed SimStep mats directly on your premises. Ask for your personalised quote! Features Colour: Blue, grey and grey speckled available Long service life - 3 - 5 years No size or area restrictions Easy to maintain Low profile mat design Fully sealed surface; bordered by black bevelled edge strips No outgassing from polymer - 100% DOP free Safe for all cleanroom environments Antimicrobial technology that prevents the growth of bacteria Low profile yet highly stable mat can withstand heavy trolleys and pallet trucks Advantages Reduces the number of particles and germs Environmental savings - replaces disposable adhesive mats, reduces waste and eliminates labour for consumables to be produced and delivered Significantly reduces air pollution Correct placement of the SimStep mat prevents cross-contamination The polymer surface provides a comfortable walking surface Up to 99% contamination control after just 3-6 foot contacts Sustainable and resource-saving antimicrobial protection ESD-safe Complete decontamination in large and unavoidable control zones Does not lose its effectiveness even after being stepped on several times Disposable overshoes do not get stuck No transfer of adhesive to critical areas SimStep mats are recyclable Compared to removable disposable mats, the polymer mat enables cost savings of up to 60 % over the entire service life if the manufacturer's recommendations are followed Installation possible by trained installation personnel Technical data Further information available on request Mat width: approx. 200 cm (+6.4 cm edge material per side) Length: 100-1000 cm (can be ordered in increments of 100, +6.4 cm edge material per side), but can be easily cut to the desired dimensions Thickness: approx. 2 mm Surface resistance: 108 Ohm Load capacity: approx. 90 kg/cm2 Heat resistance: 0-52°C In addition to the mat, the scope of delivery also includes adhesive and edging material
SimStep® Metal Rail
The "stainless steel metal rail" is a border material for your SimStepMat. Suitable for extreme loading capacity, e.g. by forklift trucks. Material & Properties Material: stainless steel Length: 1000 mm Width: 100 mm Height: 3 mm Edges are lasered Bevelled Drilled Drill holes chamfered without further processing according to sample Packing 1 piece
Cleaning agent InSpec N10
Alternatives AGMA – Alkaline Cleaning Agent The InSpec N10 is a powerful alkaline cleaning agent for cleanroom walls, floors, ceilings and work surfaces. Specially developed for permanent adhesive mats. It is used for the removal of process residues and general soiling. It is an excellent cleaner, but leaves more residue than N7.Ready to use spray bottle, diluted with WFI water quality. Material & Properties Material: 4% alkaline detergent Colour: light yellow ISO 5 suitable for cleaning by hand Validated three-month shelf life after opening 2 years shelf life Application Non-sterile InSpec N10 is designed for cleaning hard surfaces by spraying, wiping by hand and with a mop. Spray at a distance of approx. 15-20 cm. 5 litre versions, pour into suitable container for mop wiping. For mop application, add 100 ml concentrate to 2.5 litres of water. Apply to surface for complete coverage. Packaging 6 bottles in a carton
Cleaning Mop with Wringer
Mop specially designed for cleaning permanently adhesive dust control mats/adhesive mats. Cleaning Steps Pre-clean the adhesive mat with the damp mop. Wash out and wring out the mop. Absorb the moisture on the adhesive mat with the mop. No separate cleaning tool is required. The adhesive mat can then be used again immediately. Material & Properties Wiping width 30 cm Can be used as a wet and dry mop Double roller head with wringer and curved handle Two wringer roller axles at the front and rear, each with 4 x 3 wringer rollers Pull lever to pull the sponge into the wringer, which wrings out water or other liquids Holds up to 10 times its own weight in water or liquid No water leakage Wipes wet or damp Self-cleaning Chemical and UV resistant Durability approx. 2000 working hours Heat resistant up to approx. 180° Colorfast Break-proof Total length including handle: approx. 130 cm Packaging 1 x cleaning mop, cleaning width 30 cm 1 x handle, approx. 95 cm, stainless steel Please note that the mop is available in green or red/gray, depending on availability!

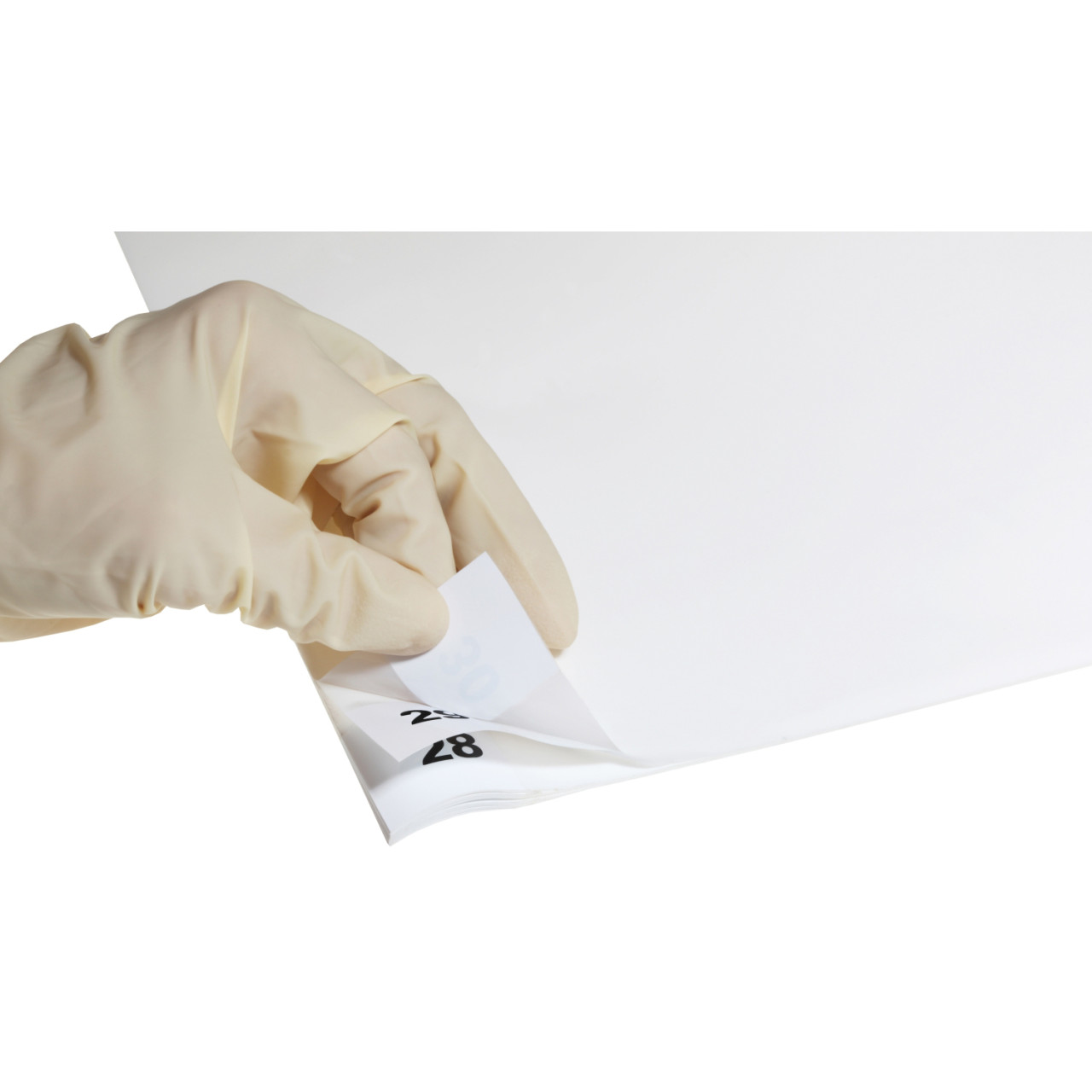

Dust control mat Adhesive mat SIMTACK®
Our SimTack dust control mats consist of 30 layers of self-adhesive PE film and reliably remove particles and fibres from shoe soles and castors. Thanks to the completely adhesive underside, the dust-binding mats adhere securely to the floor. If the top layer becomes soiled, it can simply be removed. SIMTACK white film adhesive mat (also known as Stickymat or Tackymat) for the transition from the grey room to the cleanroom. Material & properties Material: polyethylene film normal adhesive strength Colour white Total thickness approx. 1.5 mm Individual thickness approx. 0.045 mm water-based adhesive RoHs-compliant with indicator for remaining film on the mat 30 layers with indicator Packaging 1 mat with 30 layers of film 8 mats in a box

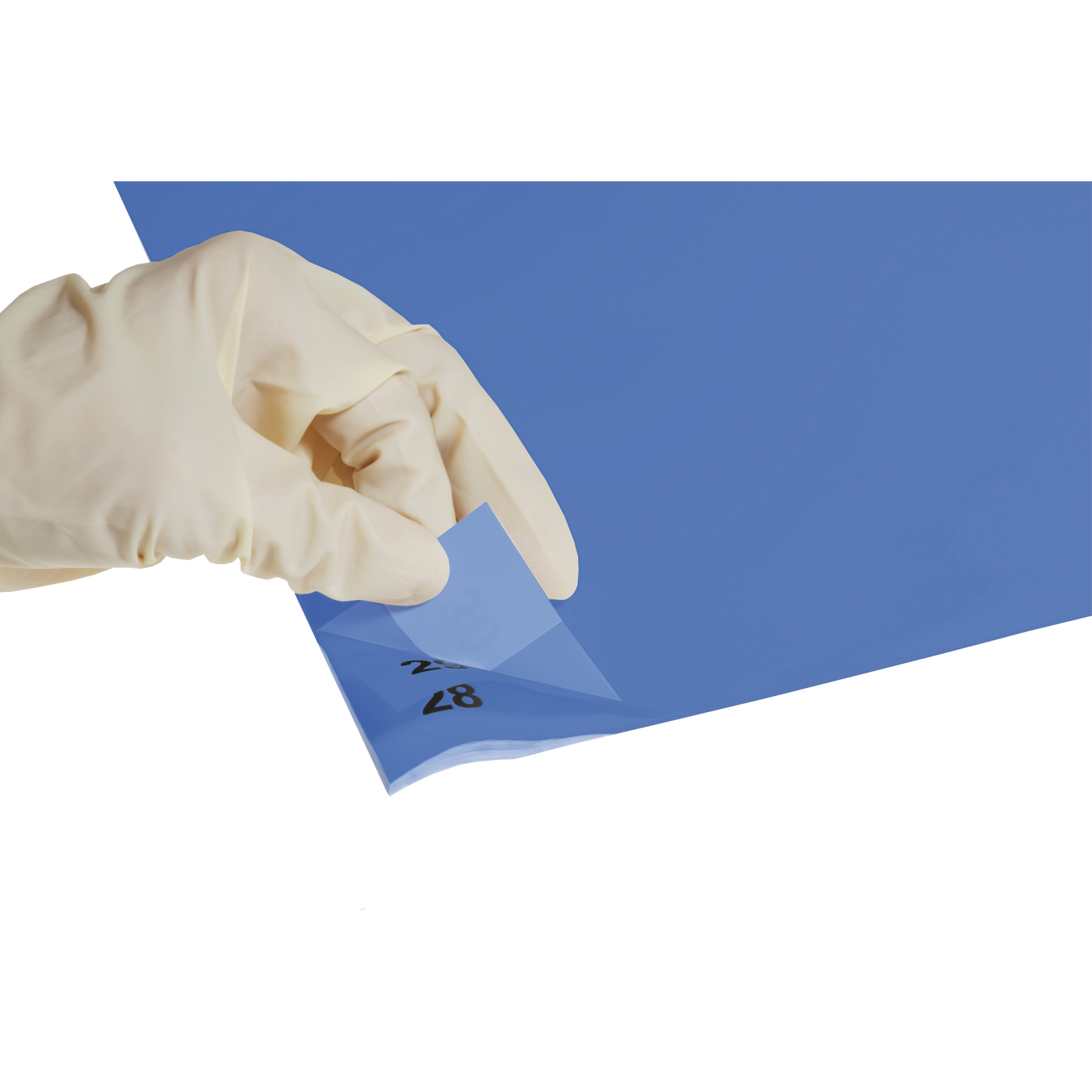

Dust Binding Mat - Adhesive Mat SimTack®
Our SimTack Dust Binding Mats consist of 30 layers of self-adhesive PE film and reliably remove particles and fibres from shoe soles and castors. Due to the completely adhesive underside, the dust binding mats adhere securely to the floor. If the top layer is appropriately soiled, it is simply peeled off. Film adhesive mat SIMTACK white (also called Stickymat or Tackymat) for the transition from the grey room to the clean room. Material & Properties Material: Polyethylene film Normal adhesive strength Colour: blue Total thickness: approx. 1.5 mm thickness single: approx. 0,045mm water-based adhesive RoHs conform with indicator for remaining film on the mat 30 layers with indicator 2 different formats for universal use size approx. 114 x 66 cm or 114 x 45 cm Packaging 1 mat with 30 layers of film 8 mats in a carton
Antistatic Dust Control Mat Adhesive Mat SimTack®
Our SimTack dust control mats consist of 30 layers of self-adhesive PE film and reliably remove particles and fibres from shoe soles and castors. Thanks to the completely adhesive underside, the dust-binding mats adhere securely to the floor. If the top layer becomes soiled, it can simply be removed. SIMTACK white film adhesive mat (also known as Stickymat or Tackymat) for the transition from the grey room to the cleanroom. Material & properties Material: Polyethylene film Size: approx. 114 x 66 cm normal adhesive strength Colour: white Total thickness: approx. 1.5 mm Individual thickness: approx. 0.045 mm water-based adhesive RoHs-compliant with indicator for remaining film on the mat For universal use Antistatic material properties Packaging 1 mat with 30 layers of film 8 mats in one box
