Semiconductors
For pure precision - download our flyer on our core products for the semiconductor industry here.
Filter
–
PU:
Bag with 100 pieces
Available
Format:
ca. 23 x 23 cm
The Cleanroom Wipe VIPERS® TiO2-F is manufactured with double knitted continuous filament made of polyester. The special feature of this wipe is that it is free of titanium oxide.
Material & Properties
Material: Polyester
length: 10 cm
Width: 10 cm
Thickness: 0,35-0,45 mm ± 0,05 mm
Colour: white
Basis weight: 140 g/m²
ISO 4
Double knit endless filament
Free of titanium oxide (TiO²)
Edges ultrasonic and laser welded
Absorbency: 180 ml/m²
High absorbency and wiping performance
Control of submicron particles and chemical residues
Double and vacuum packed in clean room
Packaging
600 wipes in a bag
10 bags in a carton ( 6000 wipes)
Tip
PU:
Bag with 50 Pieces
Available

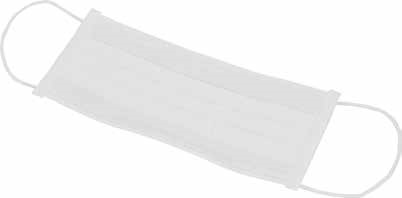

The RR 55/45 disposable face mask is a well-ventilated disposable face mask for the cleanroom. It is soft and therefore well suited for long wearing times. Automatically manufactured and packed in a class 1000 cleanroom.
Material mask & filter
Outer: 55% polyethyene, 45% polypropylene.
Inside: 55% polyethyene, 45% polypropylene
Filter medium: 100% polypropylene
Noseband: Wire embedded in polyester; WxL 3,5x11,2mm
Ear loop: PET 75% + Spandex 25%, WxL 2x160mmColour: White
Length: 210 mm ± 5 mm
Width: 90 mm ± 5 mm
Particle Test: Air Particle ( >0.3㎛)≤ 500 ea/ft3. // corresponds to: 17,657.35 particles ( >0.3㎛)/ MQ3
Area of application
Semiconductors, TFT-LCD, electronics production lines, food companies and hospitals
Packaging
Individually packed
50 pieces in 1 bag
20 bags in 1 carton
Not a medical product, used for product protection in clean rooms.
PU:
Carton with 1000 pieces
Available
Size:
S
The "Cleanroom Vinyl Glove" is the most cost-effective representative among the disposable gloves and scores points due to the pleasantly soft material that is created when plasticisers are used in the production process.Vinyl gloves have limited stretch and tear easily. Furthermore, they can only be used in areas with a low risk factor and are rather unsuitable for work requiring a high degree of dexterity.
Material & Properties
Material: Vinyl
Length: Min. 300 mm
Thickness: Min. 0.08 mm ± 0.02 mm
Colour Natural white/semitransparent
Powder-free
Latex-free
Can be worn on both sides
Rolled edge
Very low particle emission
Supple and smooth
Plasticiser-free raw material; contains no phthalates, phenols, bisphenols A and nonylphenols
Recommendation: ISO 5
Elongation Min. 350 %.
Tensile strength Min. 9 Mpa
Surface resistance≤ 5.798 Ω
Particle release (LPC) 6.960 particles/cm² (0,5~1,00μm)
Packaging
Bag of 100 pieces
10 bags in carton (1000 pieces)
PU:
Carton with 300 pairs
Available
The "Overshoe with Carbon Strip" is a blue overshoe made of SMMS non-woven fabric with black conductive carbon strip (98 % polyester, 2 % conductive threads). SMMS fabric garments are strong and durable yet provide excellent comfort, breathability, softness and wearability, preventing and isolating dust, particles, alcohol, blood, bacteria and virus penetration. Widely used in high class protective medical industry , laboratory, electronic, pharmaceutical.
Material & Properties
Material: SMMS non-woven fabric
Carbon tyre: 98%polyester, 2%conductive threads
Colour: blue
Weight: 9g / piece
Length: 400 mm
Height: 170 mm
Surface resistance 106 / 107 Ohm
Material thickness: 7,5mil
Resistance: The materials do not react or discolour after friction with a cloth soaked in 70/30 IPA
The non-woven material is made of polypropylene, which should be resistant to many solvents. However, the strip may have limited resistance, especially to chlorinated hydrocarbons or amines and ammonia
Packaging
300 pairs in a carton
Tip
PU:
1 piece
Available
Length:
100 cm
Our new SimStep permanent adhesive mat is a high-performance decontamination mat with outstanding properties.
Full service - for you right from the start. Consultancy, planning, project management.
Our specially trained installation team will support you with your SimStep project right through to professional installation. If you wish, we can also regularly check the performance of the installed SimStep mats directly on your premises. Ask for your personalised quote!
Features
Colour: Blue
Long service life - 5+ years on average
No size or area limits
Easy to maintain
Low profile mat design
Fully sealed surface; bordered by black bevelled edge strips
No outgassing from polymer - 100% DOP free
Safe for all cleanroom environments
Antimicrobial technology that prevents the growth of bacteria
Low profile yet highly stable mat can withstand heavy trolleys and pallet trucks
Advantages
Reduces the number of particles and germs
Environmental savings - replaces disposable adhesive mats, reduces waste and eliminates labour for consumables to be produced and delivered
Significantly reduces air pollution
Correct placement of the SimStep mat prevents cross-contamination
The polymer surface provides a comfortable walking surface
3 steps or 3 wheel rotations guarantee 100% particle and bacteria removal
Complete decontamination in large and unavoidable control zones
Does not lose effectiveness even after repeated use
Disposable overshoes do not get stuck
No transfer of adhesive to critical areas
SimStep mats are recyclable
Maximum economic efficiency
Cost savings due to elimination of purchasing, storage and replacement of conventional peel-off adhesive mats
Technical data
Mat width: approx. 200 cm (+6.4 cm edge material per side)
Length: 100-1000 cm (can be ordered in increments of 100, +6.4 cm edge material per side), but can easily be cut to the desired dimensions
Thickness: approx. 2 mm
Surface resistance: 108 Ohm
Load capacity: approx. 90 kg/cm2
Heat resistance: 0-52°C
In addition to the mat, the scope of delivery also includes adhesive and edging material
Tip
PU:
1 piece
Available
Length:
100 cm
Our new SimStep Tough permanent adhesive mat is a high-performance decontamination mat with outstanding properties and extreme resilience, also suitable for forklift trucks.
Full service - for you right from the start. Consultancy, planning, project management.
Our specially trained installation team will support you with your SimStep project right through to professional installation. If you wish, we can also regularly check the performance of the installed SimStep mats directly on your premises. Ask for your personalised offer!
Features
Colour: Blue
Long service life - 5+ years on average
No size or area limits
Easy to maintain
Low profile mat design
Fully sealed surface; bordered by black bevelled edge strips
No outgassing from polymer - 100% DOP free
Safe for all cleanroom environments
Antimicrobial technology that prevents the growth of bacteria
Low profile yet highly stable mat can withstand heavy trolleys, pallet trucks and even forklift traffic
Advantages
Reduces the number of particles and germs
Environmental savings - replaces disposable adhesive mats, reduces waste and eliminates labour for consumables to be produced and delivered
Significantly reduces air pollution
Correct placement of the SimStep mat prevents cross-contamination
The polymer surface provides a comfortable walking surface
3 steps or 3 wheel rotations guarantee 100% particle and bacteria removal
Complete decontamination in large and unavoidable control zones
Does not lose effectiveness even after repeated use
Disposable overshoes do not get stuck
No transfer of adhesive to critical areas
SimStep mats are recyclable
Maximum economic efficiency
Cost savings due to elimination of purchasing, storage and replacement of conventional peel-off adhesive mats
Technical data
Mat width: approx. 200 cm (+6.4 cm edge material per side)
Length: 100-1000 cm (can be ordered in increments of 10, +6.4 cm edge material per side), but can easily be cut to the desired dimensions
Thickness: approx. 2.6 mm
Surface resistance: 108 Ohm
Load capacity: approx. 130 kg/cm2
Heat resistance: 0-52°C
In addition to the mat, the scope of delivery also includes adhesive and edging material.
Tip
PU:
Bag of 10 pairs
Available
Size:
S

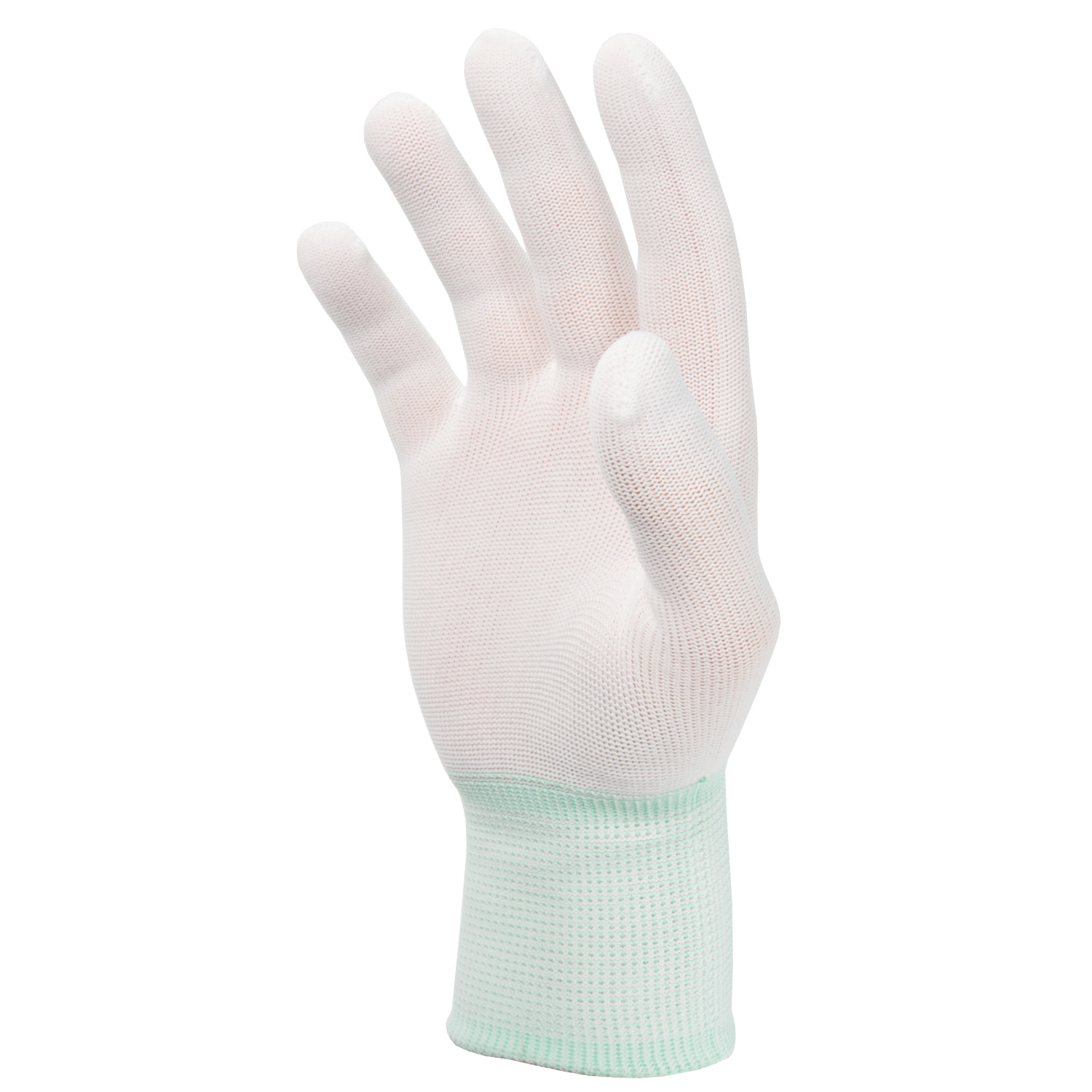

The Han-Fit cleanroom glove is an IAB own brand. It is made of high-quality, seamless nylon, is uncoated and therefore offers a very high level of climate comfort. The glove is therefore also used as an underglove in cleanrooms.
The nylon gloves from the Han series are very robust and ideal for general work in clean environments and cleanrooms from ISO 7.
Material & properties
Material: nylon
Length: approx. 240 mm
Colour: white
ISO 7
KAT II
Uncoated
can be ideally worn as a glove under disposable rubber gloves
Hand-specific
High climate comfort and high tactile sensitivity
Non-slip
Low linting
Abrasion resistant
Silicone-free
Coloured cuff to differentiate between sizes
Areas of application:
Automotive industry
Product protection
Precision mechanics
Optics
Underglove in cleanrooms
Packaging
10 pairs in a bag
24 bags per box (240 pairs)
Tip
New
PU:
1 piece
Our new SimStep Tough permanent adhesive mat is a high-performance decontamination mat with outstanding properties and extreme resilience, also suitable for forklift trucks.
Full service - for you right from the start. Consultancy, planning, project management.
Our specially trained installation team will support you with your SimStep project right through to professional installation. If you wish, we can also regularly check the performance of the installed SimStep mats directly on your premises. Ask for your personalised offer!
Features
Colour: Grey
Long service life - 5+ years on average
No size or area limits
Easy to maintain
Low profile mat design
Fully sealed surface; bordered by black bevelled edge strips
No outgassing from polymer - 100% DOP free
Safe for all cleanroom environments
Antimicrobial technology that prevents the growth of bacteria
Low profile yet highly stable mat can withstand heavy trolleys, pallet trucks and even forklift traffic
Advantages
Reduces the number of particles and germs
Environmental savings - replaces disposable adhesive mats, reduces waste and eliminates labour for consumables to be produced and delivered
Significantly reduces air pollution
Correct placement of the SimStep mat prevents cross-contamination
The polymer surface provides a comfortable walking surface
3 steps or 3 wheel rotations guarantee 100% particle and bacteria removal
Complete decontamination in large and unavoidable control zones
Does not lose effectiveness even after repeated use
Disposable overshoes do not get stuck
No transfer of adhesive to critical areas
SimStep mats are recyclable
Maximum economic efficiency
Cost savings due to elimination of purchasing, storage and replacement of conventional peel-off adhesive mats
Technical data
Mat width: approx. 200 cm (+6.4 cm edge material per side)
Length: 100-1000 cm (can be ordered in increments of 10, +6.4 cm edge material per side), but can easily be cut to the desired dimensions
Thickness: approx. 2.6 mm
Surface resistance: 108 Ohm
Load capacity: approx. 130 kg/cm2
Heat resistance: 0-52°C
In addition to the mat, the scope of delivery also includes adhesive and edging material.
PU:
Carton with 1000 pieces
Available
The "Overshoe with carbon strip" is a disposable overshoe made of polypropylene and a conductive polyester strip.
Material & Properties
Shoe material: Polypropylene
Conductive strip material: Polyethylene
Length : 480 mm mm
Length of conductive strip: 810 mm
Width: 165 mm
Width of conductive strip: 20 mm
Weight: 36 g/m2
Colour: blue
Packaging
100 pieces in a bag
10 bags in carton (1000 pieces)
Tip
New
PU:
1 piece

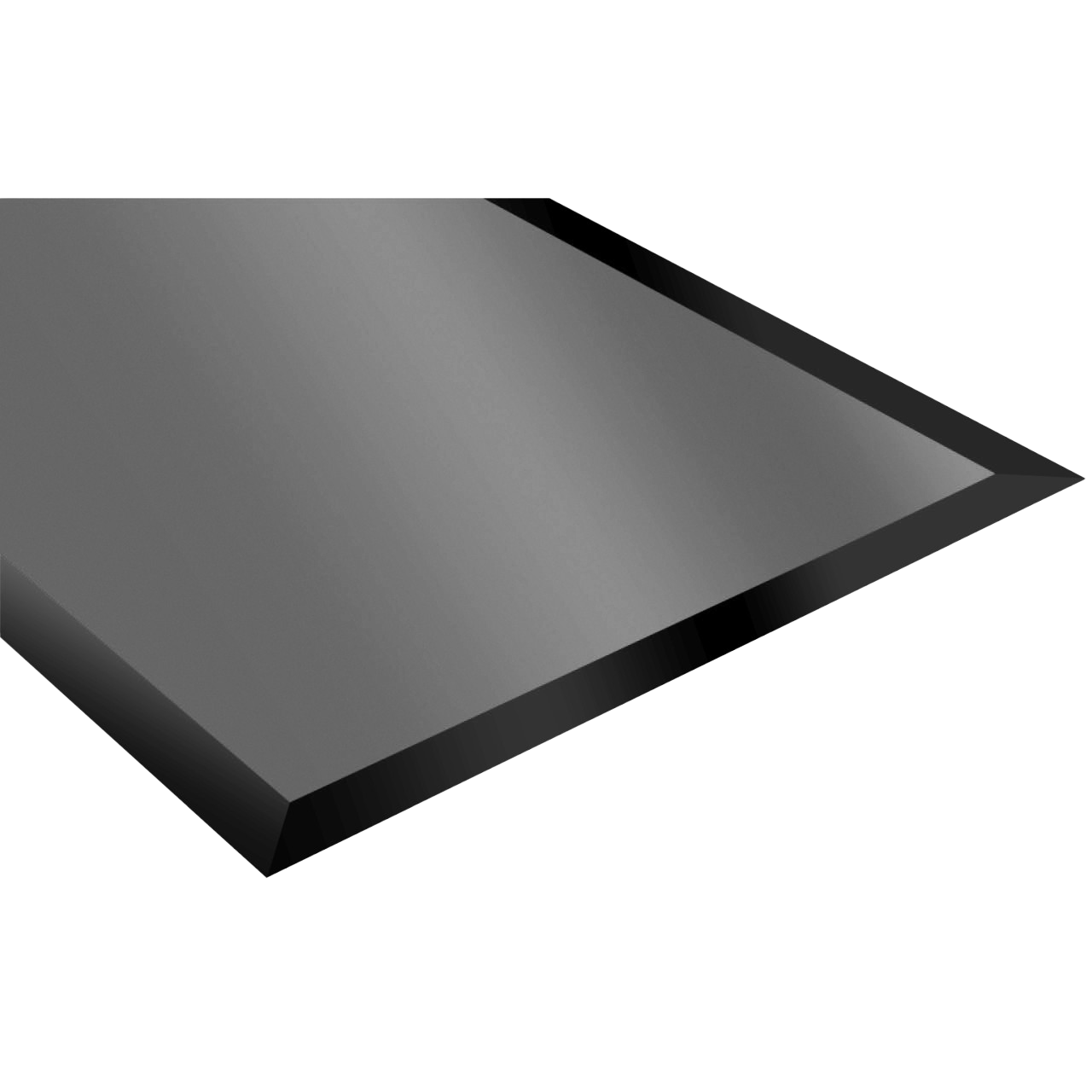

Our new SimStep permanent adhesive mat is a high-performance decontamination mat with outstanding properties.
Full service - for you right from the start. Consultancy, planning, project management.
Our specially trained installation team will support you with your SimStep project right through to professional installation. If you wish, we can also regularly check the performance of the installed SimStep mats directly on your premises. Ask for your personalised quote!
Features
Colour: Grey
Long service life - 5+ years on average
No size or area limitation
Easy to maintain
Low profile mat design
Fully sealed surface; bordered by black bevelled edge strips
No outgassing from polymer - 100% DOP free
Safe for all cleanroom environments
Antimicrobial technology that prevents the growth of bacteria
Low profile yet highly stable mat can withstand heavy trolleys and pallet trucks
Advantages
Reduces the number of particles and germs
Environmental savings - replaces disposable adhesive mats, reduces waste and eliminates labour for consumables to be produced and delivered
Significantly reduces air pollution
Correct placement of the SimStep mat prevents cross-contamination
The polymer surface provides a comfortable walking surface
3 steps or 3 wheel rotations guarantee 100% particle and bacteria removal
Complete decontamination in large and unavoidable control zones
Does not lose effectiveness even after repeated use
Disposable overshoes do not get stuck
No transfer of adhesive to critical areas
SimStep mats are recyclable
Maximum economic efficiency
Cost savings due to elimination of purchasing, storage and replacement of conventional peel-off adhesive mats
Technical data
Mat width: approx. 200 cm (+6.4 cm edge material per side)
Length: 100-1000 cm (can be ordered in increments of 100, +6.4 cm edge material per side), but can easily be cut to the desired dimensions
Thickness: approx. 2 mm
Surface resistance: 108 Ohm
Load capacity: approx. 90 kg/cm2
Heat resistance: 0-52°C
In addition to the mat, the scope of delivery also includes adhesive and edging material
Tip
PU:
Bag with 100 pieces
Available
Size:
XS
The Riverstone LE-TACKY is a nitrile cleanroom glove with very low residue values. Unlike other nitrile gloves, no sulphur or zinc oxides are added to the glove during manufacture. The very good stretch behaviour exceeds that of the nitrile gloves known to us to date - even that of some neoprene gloves by far.
Material & properties
Material: 100 % nitrile
Colour: White
Length: 300 mm
Thickness: 0.08 mm +/- 0.02 mm
Wearable on both sides
ISO 4
Hardly extractable substances
Powder-free
Latex-free
Textured fingertips
Rolled edge
Very low particle release
Very stretchy, supple and non-slip
Without plasticisers, contain no phthalate ester, silicone oil and amide
Washed with 0.1m high-resistance water with> 17 MegaOhm water and packaged in an ISO 4 cleanroom environment
Packaging
100 pieces per bag
10 pouches per carton
PU:
1 piece
Variant:
1 liter spray bottle

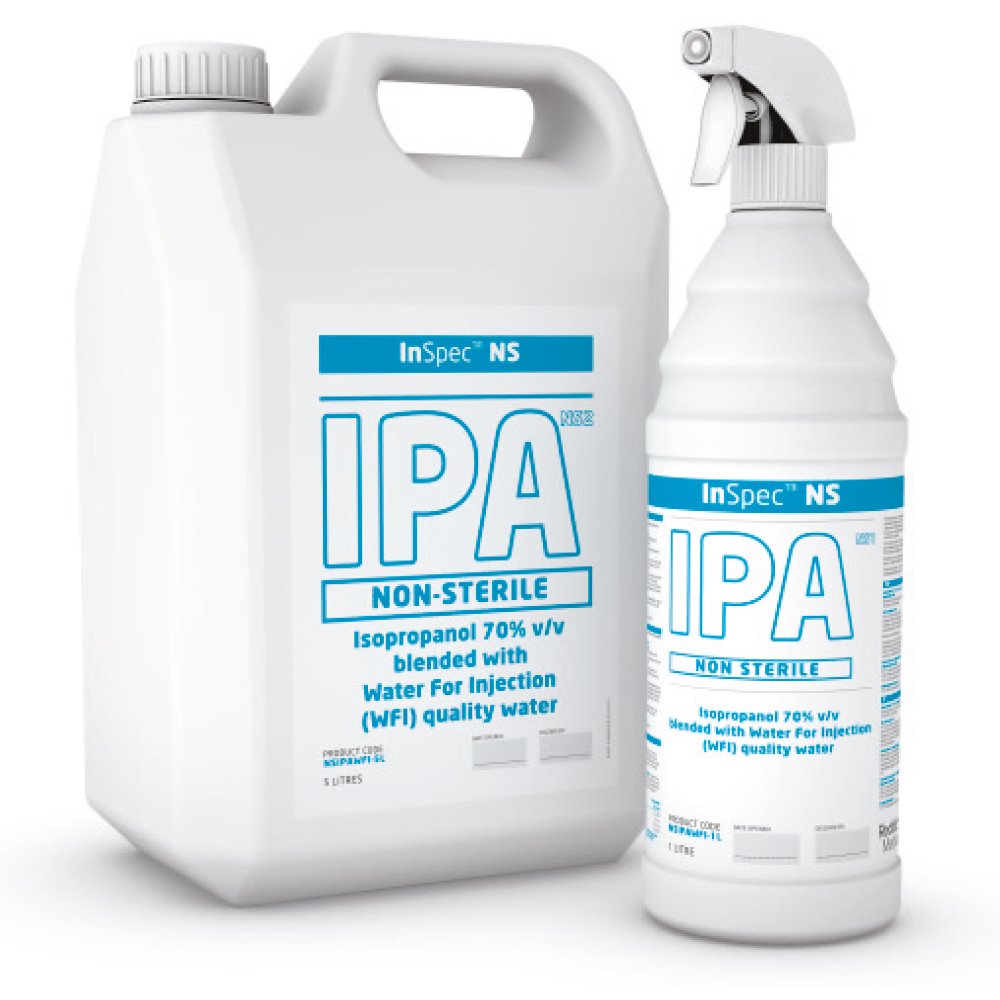

InSpec IPA is a ready-to-use disinfectant consisting of a 70% alcohol solution (isopropanol) and 30% ultrapure water WFI quality. The product can be used for wiping down equipment, hard surfaces (floors, walls and ceilings) and spraying gloved hands. InSpec IPA is manufactured according to GMP standards in an ISO 6 cleanroom. The product is filled and capped under an ISO Class 5 laminar flow.
Material & properties
Solution of 70% alcohol and water of WFI quality
Fast acting
Leaves little residue
Fast acting
Bactericidal and fungicidal effect
Validated three-month shelf life after opening
All formats are produced with WFI grade water
Each bottle is packed with two sachets
Ideal disinfectants for surfaces and aseptic transfer
Manufactured in accordance with Good Manufacturing Practice (GMP)
Packaging
6 bottles in a carton
Tip
New
PU:
Bag with 5 pieces

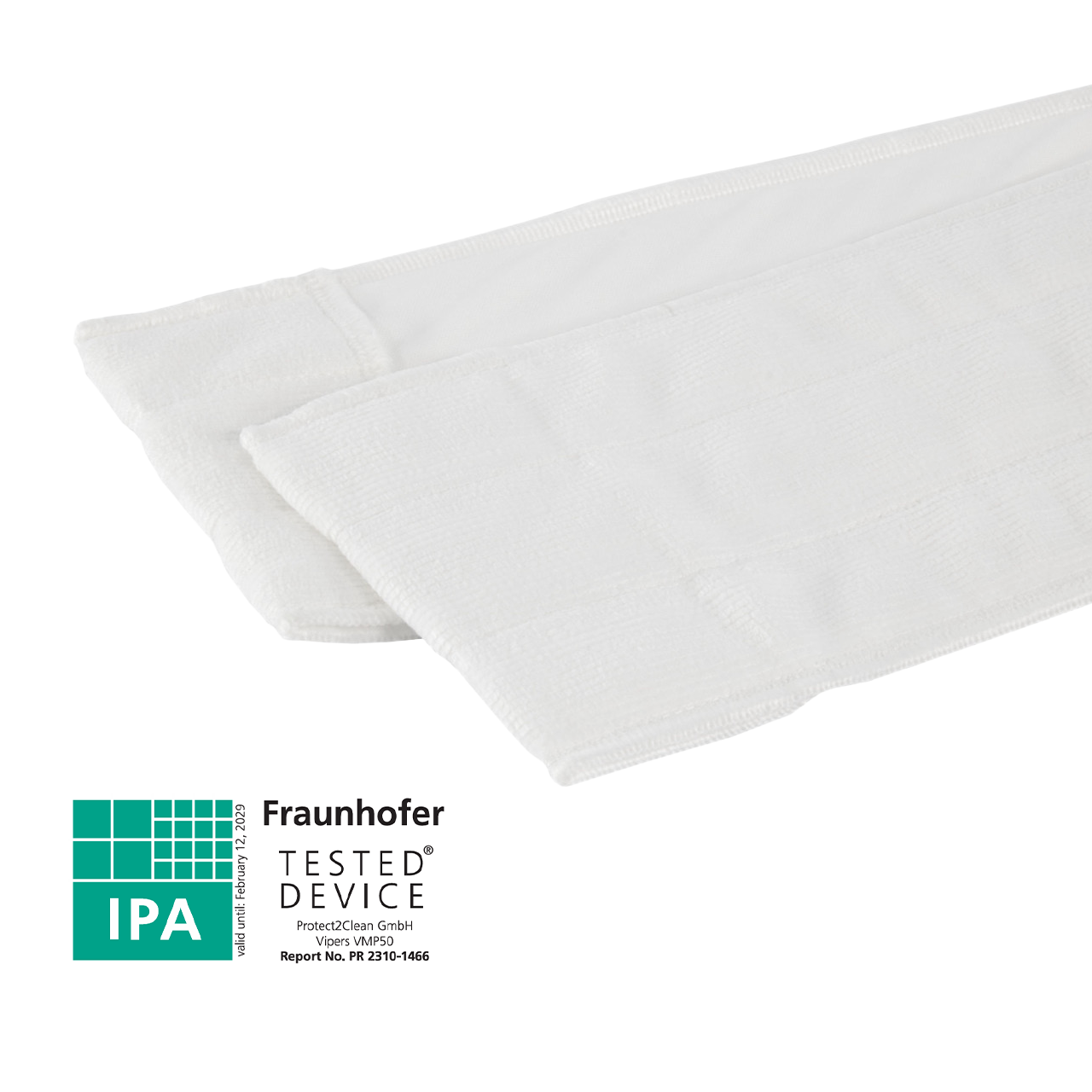

The VMP50 disposable mop is a high-quality, non-sterile microfibre mop. The Vipers VMP50 mop has an extremely high-quality microfibre trim material made from 100% micro polyester. Thanks to its special surface structure, this disposable mop impresses with its outstanding cleaning performance, accurate surface coverage and excellent value for money.
Material & properties
Material: Micro polyester / microfibre
Colour: White
Length: 400 mm
Width: 125 mm
Weight: 50 g (+/- 5%)
ISO 4
GMP C/D
Absorption capacity > 400%, max. 743% (5684 ml/²)
Compatible for use with solvents such as IPA
Application/area of use
Recommended for cleaning and decontamination of GMP rooms/cleanroom environments
Cleanroom mop with pockets, for 40 cm mop systems
Highest cleaning performance due to high-quality microfibre
High area performance thanks to multi-layered liquid reservoir
Even and ideal liquid release
Packaging
5 pieces in a bag
20 bags in a box (100 pieces)
Tip
PU:
Bag of 10 pairs
Available
Size:
S
The SimLite Fit glove is an uncoated 18 gauge nylon knitted glove that is suitable as a light assembly or underglove.
Material & Features
Material: Nylon
Length: approx. 200 - 250 mm depending on size
Thickness: approx. 0.08 mm ± 0.02
Colour: White
Knitted
18 gauge
Knitted cuff, individual cuff colour for each size
Very thin like a second skin and yet robust
Outstanding comfort and perfect fit
Suitable for light assembly work and as an underglove
Extremely light
Uncoated
Packaging
10 pairs per bag
24 bags per box (240 pairs)
Tip
New
PU:
Bag with 50 pieces
The VIPERS® StarSat VPC68 cleanroom wipe is a non-woven wipe impregnated with IPA in a resealable bag.
Material & properties
Material: 55% cellulose / 45% polyester
Length: 230 mm
Width: 230 mm
Thickness: 0.30 mm ± 0.02 mm
Colour: white
Base weight: 68 g/m2
ISO 5
Edge cut: Laser cut
70 % IPA (isopropyl alcohol) and 30 % deionised water (DIW)
Absorption capacity: 288 ml/m2
For wiping and cleaning in critical environments
Increases solvent control and accountability
Packaging
50 pieces in a resealable bag
24 sachets in a box
PU:
1 piece
Variant:
1 liter spray bottle
The "InSpec N10" is a powerful alkaline cleaning agent for cleanroom walls, floors,ceilings and work surfaces.Specially developed for permanent adhesive mats.It is used for the removal of process residues and general soiling. It is an excellent cleaner, but leaves more residue than N7.Ready to use spray bottle, diluted with WFI water quality.
Material & Properties
Material: 4% alkaline detergent
Colour: light yellow
ISO 5
suitable for cleaning by hand
Validated three-month shelf life after opening
2 years shelf life
Application
Non-sterile InSpec N10 is designed for cleaning hard surfaces by spraying, wiping by hand and with a mop. Spray at a distance of approx. 15-20 cm. 5 litre versions, pour into suitable container for mop wiping. For mop application, add 100 ml concentrate to 2.5 litres of water. Apply to surface for complete coverage.
Packaging
Single purchase: 1 litre spray bottle (piece)
6 bottles in a carton
PU:
Bag of 600 pieces
Format:
ca. 10 x 10 cm
The Vipers P140 cleanroom wipe is an ultra-soft polyester knitted wipe with a high filament count. This makes it softer and more absorbent than conventional polyester cloths.
Material & Properties
Material: Polyester
Dimensions: 10x10 cm, 15x15 cm or 23x23 cm
Basic weight 140 g/m²
Colour white
Thickness 0.38 mm
ISO 4
Ultrasonically sealed edges
Solvent resistant
Extremely low-linting and very low particle release
Pick-up capacity 415 ml/m
Pick-up speed ≤ 1.0 sec.
PU:
Bag of 30 pieces
PROSAT 911 Wipes consist of 100 % polypropylene wipes soaked in a solution of 70 % isopropanol alcohol and 30 % deionised water in a resealable bag.
PROSAT Wipes use a meltblown polypropylene wipe that is exceptionally clean because it is free of any additives and has a very low sodium concentration. Increase solvent control and detectability and reduce VOC emissions. Compatible with ISO Class 5 cleanrooms
Material & Properties
Wipe material:Polypropylene
Wipe construction:Meltblown non-woven fabric
Saturation solution; (mixing ratio and ingredients): 70% isopropyl alcohol / 30% deionised water
230 x 280 mm
Packaging
30 wipes in inner bag
10 bags in outer bag
5 outer bags in a carton (1500 wipes)
