Filter
–
Tip
PU:
1 piece
Size:
S
The reusable cleanroom long gown is made from a state-of-the-art cleanroom fabric.
Material & properties
Material: polyester + carbon
Cuffs on the arms
Press studs on collar
2-way zip
No pockets
Colour: White
Fabric
Warp (polyester filament yarn): 75d
Weft (polyester texturised yarn): 100d
Conductive yarn, on warp and weft: 20d
Weave structure: 3/2 twill
Density: 172 x 121 (warp x weft/inch)
Weight: 120 g/m²
Conductive yarn spacing: 4.5mm x 4.5mm grid
Pore size: 20 μm
Particle filtration (IES-RP-CC003.2):
99.0% at 0.3 μm
99.4% at 0.5 μm
Air permeability (ASTM D 737-1996): 3.1 cc/cm² /sec
Water vapour permeability (ASTM E 96-2000): 11.047 g/m² /24h
Tensile strength (ASTM D 5304):
Warp: 96.4 kg
Weft: 83.0 kg
Tear strength (ASTM D 2261-1996):
Warp: 2.2 kg
Weft: 2.1 kg
Abrasion resistance (ASTM D 3886-99): 266
Cleanroom class (recommended): ISO 4-5
Friction-related static charge (JIS L 1094-1997): Below 10 V
Drop time to 10% of 5,000V: 0.01 sec
Surface resistance (ASTM D257): 5.9 x 107 Ω/m²
Particle formation released per litre:
4 at 0.3 μm
3 at 0.5 μm
Sterilisation compatibility: steam autoclave, gamma radiation, beta radiation, ETO
Packaging
individually packed
PU:
1 Piece
Available
Die SUPERBLAST AUTOCLAVE Serie wurde speziell für alle Reinräume der Klassen A, B, C und D unter sterilen und unsterilen Bedingungen entwickelt. Ihr oberstes Ziel ist es, den Anwender vor den verarbeiteten Produkten zu schützen, aber auch die Produkte vor dem Anwender. Tatsächlich ist der menschliche Körper einer der größten Bereiche, der durch Mikroorganismen mit mehr als 30 Millionen Bakterien pro cm² Haut verunreinigt ist. Das Programm erfüllt in seiner Konzeption immer präzisere und technisch anspruchsvollere Anforderungen an den Reinraum. Diese Brille mit dem ultraweichen, thermoplastischen Gummirahmen bietet absoluten Komfort und optimalen Schutz in sensiblen und sterilen Umgebungen.
Ultrakomfortable autoklavierbare Schutzbrille
Rinne zum Flüssigkeitstransport
Einstellbares Kopfband
Über Korrekturbrillen tragbar
Belüftetes TPR-Gestell
Indirekte Belüftung an der Oberseite
Dicht an der Unterseite
Polykarbonat-Scheibe
Platinum Beschichtung (Anti-Kratzer/Antibeschlag)
Tragen einer Atemschutz-Halbmaske möglich
Kennzeichnung der Gläser: 2C-1.2, 1 BT KNSymbole der optischen Klasse:1. DauerarbeitenSymbole für mechanische Festigkeit:B. Stoß mit mittlerer Energie, hält einer 6 mm großen und 0,86 g schweren Kugel mit einer Aufprallgeschwindigkeit von 120 m/s standT. Das Festigkeitssymbol gefolgt von Buchstabe T gestattet eine Verwendung bei sehr hoher Aufprallenergie und unter Extremtemperaturen.Andere Symbole:K. Beständigkeit gegen Oberflächenbeschädigung durch feine Partikel N. Beständigkeit gegen BeschlagenKennzeichnung des Gestells: EN166 3 4 BTEN 166 : Gewährleistung der minimalen Beständigkeit gegen übliche Risiken (Herunterfallen, Verfall durch Lichteinstrahlung, Korrosion, Wärme etc.)3. Tropfen oder Spritzer4. Große Partikel > 5 Mikron.B. Stoß mit mittlerer Energie, hält einer 6 mm großen und 0,86 g schweren Kugel mit einer Aufprallgeschwindigkeit von 120 m/s standT. Das Festigkeitssymbol gefolgt von Buchstabe T gestattet eine Verwendung bei sehr hoher Aufprallenergie und unter Extremtemperaturen.
PU:
1 pair
Color:
White
|
Size:
S
The flat Overshoes are washable and equipped with rubber and envelope flap. These have a soft sole.
Material & Properties
Material: 98 % polyester / 2 % carbon
Weight: 118 g/m²
ISO 4 - 8
EU GMP A - C /US FED Std 10 - 100,000
Type of antistatic yarn: Negastat P210
Fabric: Twill 3/2
Pattern: Plaid 5mm * 5mm
Sterilization: Steam - Gamma
Breathability ISO 9237-2:1995: 18.10 l/m².s
Water tightness DIN EN ISO 11092:2014 Ret: 2,71 m²Pa/W
Tear strength ISO 13934/1:2013: warp 830 N / weft 1500 N
Abrasion resistance ISO 12947/2:1998: > 100,000 cycles
Decay time EN 1149-3: 0.01 sec
Surface resistance EN 1149-1: 10 exp6 Ohm
Particle retention: 0.3 µm = 98%, 0.5 µm = 98%, 5.0 µm = 98%
The reusable garment is made of lightweight micropolyester fabric.1. maximum washing machine load : 60 %.2. washing chemicals: anionic / non-ionic, preferably pure anionic agents with good dispersing properties.3. maximum pH: 8 - 8.5. close zipper and push buttons before washing.4. prewash: maximum 35°C - 10 minutes5. main wash: maximum 60°C - 15 minutes6. cool down 1°C per minute up to 50°C to avoid wrinkles7. rinse ( 2 x ) and neutralize with 1 cc/kg acetic acid 80%, 10 min at 40°C.8. last rinse: we recommend an antibacterial and antistatic detergent.9. dry gently and slowly.10. Tumble dry at maximum 85°C.
Application
For optimal effectiveness: try to wear clothes as closed as possible and try to avoid air holes at the neck. Air formation in the clothing (blow-up effect) must be avoided. Have your cleanroom clothing decontaminated and washed in time to avoid contamination in the cleanroom. Cleanroom clothing is not water repellent and quickly absorbs water and chemicals. Small holes and tears should be repaired (patched) as soon as possible. Cleanroom clothing should not come into contact with solvents, chemicals, disinfectants and stain removers
Maintenance
The washing frequency depends on the working environment (microelectronics - pharmaceutical ...) and working conditions. The cleanroom garments should be washed in a cleanroom laundry. The maximum washing temperature is 60°C - Do not iron! The addition of chlorine is prohibited in the washing process. A thorough rinsing and neutralization. A PH- value between 5.5 and 6 should be achieved. If dry cleaning is required: only with perchloroethylene. When drying in a dryer, a low speed is recommended. Maximum shrinkage: less than 3%.
Packaging
1 pair
PU:
1 Piece
Technical properties 611.S1.00.01
Sterilisable in an autoclave with steam
The AF121 coating applied to the lens protects against scratches and fogging and withstands up to 10 sterilisation cycles with steam
Reusable. Up to 40 sterilisation cycles with steam in an autoclave at 121°C, 1 atm for 30 min. possible
Frame made of special material that can withstand up to 40 sterilisation cycles
Replaceable lens ensures longer reusability of the full-vision goggles
All components made of anti-allergic material
Vision correction insert for prescription lenses available on request
New elasticated headband made of anti-static material with QS system for quick and easy adjustment
Labelling
Reference standards: EN166 EN170
Frame marking: U EN166 3 4 BT 2C-1.2 CE
Lens marking: 2C-1.2 U 1 BT K N CE
Frame features
Ventilation: indirect
Protection against drops and liquid splashes
Frame material: TPR
Field of vision: 220°
Weight of the entirePE (g): 128
Elasticated strap: antistatic silicone h 30 mm
Properties of the lenses
Lens material: polycarbonate
Lens colour: transparent
Technical treatment:
-Anti-fog
-anti-scratch
Thickness mm: 2.80
Curvature: base 5.0 Ciyindric
Optical class: 1
VisibleLight light transmission: 89.7 %.
UV protection: 380 nm
Sparelensitem code: 042120M
PU:
1 piece
Color:
Blue
|
Size:
S
This washable Cleanroom Coverall is made from state of the art cleanroom fabric.
Material & Properties
Material: 98% Polyester / 2% Carbon
Colour: light blue
Weave structure: 3/2 Twill
Basic weight: 120 g/m²
ISO 4
Particle filtration 0.3 µm: 99.0%
Sleeve cuffs at the arms
Press studs on collar and trouser leg
Adjustable elastic at the back
Cleanroom fabric
Autoclavable
Possible sterilisation methods: Steam autoclave, gamma irradiation, beta irradiation, ETO
Packaging
Individually packed
PU:
1 piece
Available

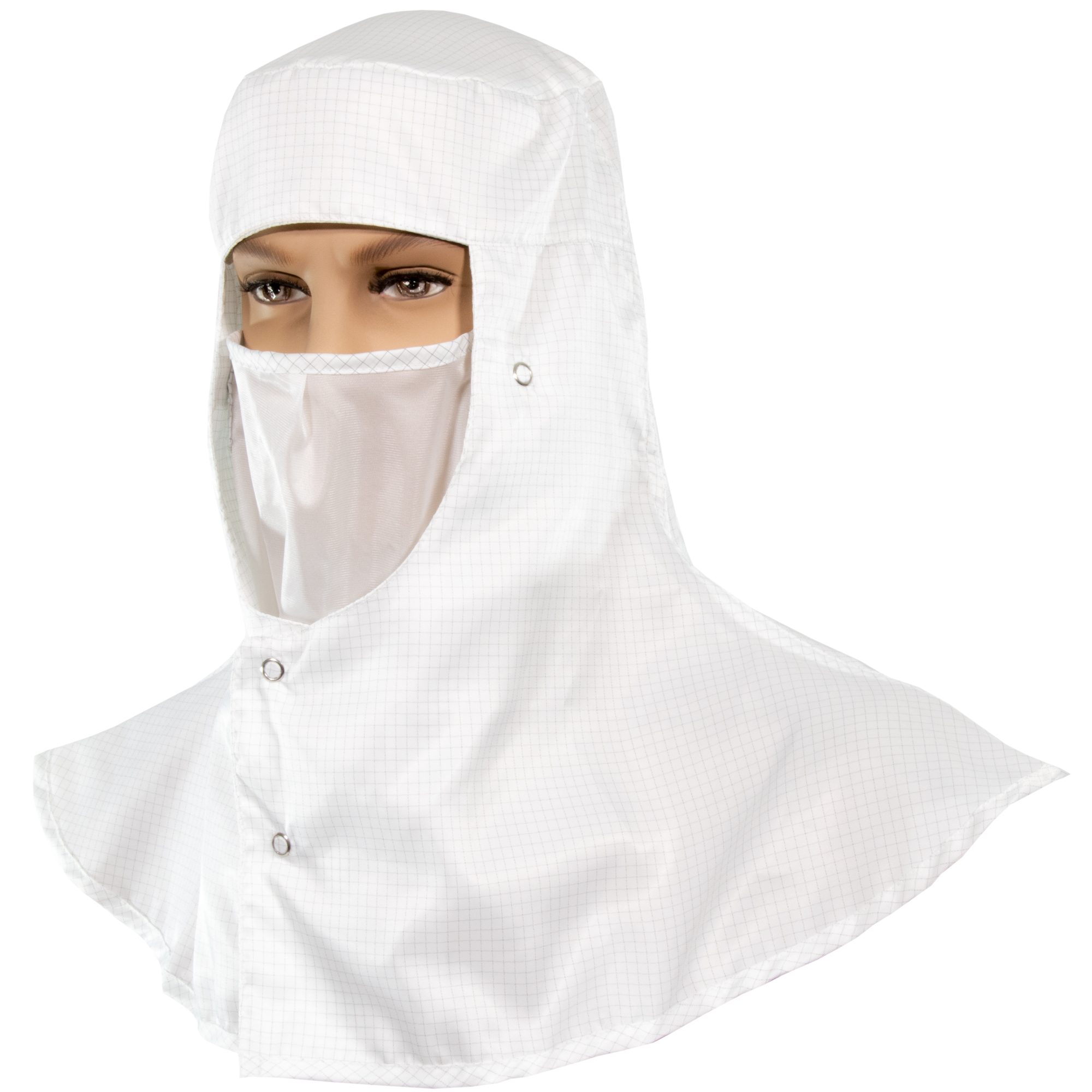

The "reusable cleanroom face mask" is made of polyester and carbon and has buttons to attach it to the bonnet.
Material & properties
Material: Polyester/Carbon
Fabric: Charmeuse
Height: 350mm
Width: 330 mm
Tol.: +15/-15 mm
Colour: White
ISO 4
GMP C/D
Autoclavable
With press studs (metal) for attachment to the cover
Packaging
1 piece
PU:
1 Piece
Technical properties
Sterilisable in an autoclave with steam and with beta and gamma rays
Reusable. Up to 30 sterilisation cycles with steam in an autoclave at 121°C, 1 atm for 30 min. possible
Frame made of special material that can withstand a large number of sterilisation cycles
All components made of anti-allergic material
Overspecs
New elasticated headband made of antistatic material with QS system for quick and easy adjustment
Material TPE/PC/silicone
PU:
1 Piece
Available
Die SUPERBLAST AUTOCLAVE Serie wurde speziell für alle Reinräume der Klassen A, B, C und D unter sterilen und unsterilen Bedingungen entwickelt. Ihr oberstes Ziel ist es, den Anwender vor den verarbeiteten Produkten zu schützen, aber auch die Produkte vor dem Anwender. Tatsächlich ist der menschliche Körper einer der größten Bereiche, der durch Mikroorganismen mit mehr als 30 Millionen Bakterien pro cm² Haut verunreinigt ist. Das Programm erfüllt in seiner Konzeption immer präzisere und technisch anspruchsvollere Anforderungen an den Reinraum. Diese Brille mit dem ultraweichen, thermoplastischen Gummirahmen bietet absoluten Komfort und optimalen Schutz in sensiblen und sterilen Umgebungen.
Ultrakomfortable autoklavierbare Schutzbrille
Rinne zum Flüssigkeitstransport
Einstellbares Kopfband
Über Korrekturbrillen tragbar
Ultra-belüftetes TPV-Gestell
Direkte Belüftung an der Oberseite
Dicht an der Unterseite
Polykarbonat-Scheibe
Platinum Beschichtung (kratzfest/Antibeschlag)
Tragen einer Atemschutz-Halbmaske möglich
Höhere Anzahl von Zyklen bei der Autoklavier-Sterilisation bei 134°C gegenüber den anderen beiden SUPERBLAST AUTOCLAVE Modellen
Kennzeichnung der Gläser: 2C-1.2, 1 BT KNSymbole der optischen Klasse:1. DauerarbeitenSymbole für mechanische Festigkeit:B. Stoß mit mittlerer Energie, hält einer 6 mm großen und 0,86 g schweren Kugel mit einer Aufprallgeschwindigkeit von 120 m/s standT. Das Festigkeitssymbol gefolgt von Buchstabe T gestattet eine Verwendung bei sehr hoher Aufprallenergie und unter Extremtemperaturen.Andere Symbole:K. Beständigkeit gegen Oberflächenbeschädigung durch feine Partikel N. Beständigkeit gegen BeschlagenKennzeichnung des Gestells: EN166 BTEN 166 : Gewährleistung der minimalen Beständigkeit gegen übliche Risiken (Herunterfallen, Verfall durch Lichteinstrahlung, Korrosion, Wärme etc.)3. Tropfen oder Spritzer4. Große Partikel > 5 Mikron.B. Stoß mit mittlerer Energie, hält einer 6 mm großen und 0,86 g schweren Kugel mit einer Aufprallgeschwindigkeit von 120 m/s standT. Das Festigkeitssymbol gefolgt von Buchstabe T gestattet eine Verwendung bei sehr hoher Aufprallenergie und unter Extremtemperaturen.
Tip
PU:
1 piece
Size:
XL
The reusable long underwear T-shirt is ultra-light and breathable. It is made from lightweight micropolyester and has cuffs on the arms.
Material & properties
Material: 98% polyester / 2% carbon
Colour: light blue
Pattern: Striped 5mm
Fabric: plain weave 1/1
Base weight: 93 g/m²
ISO 7
GMP C/D
Cleanroom fabric
Round collar
Long sleeves with cuffs
Seamed at the hip
Ultralight
antistatic
Autoclavable
Packaging
individually packed in a bag
PU:
1 piece
Available
TPR frame
Indirect ventilation at the top
Tight seal on the underside
Self-closing, comfortable full face shield
Hygienic headband made from isoprene
Channel for fluid transport
Can be worn over prescription glasses
Platinum coating (anti-scratch/anti-fog)
Lens labelling: 2C-1.2, 1 FT KNOptical class symbols:1. Continuous workMechanical strength symbols:F. Low-energy impact, withstands a 6 mm bullet weighing 0.86 g at an impact speed of 45 m/sB. Medium energy impact, withstands a 6 mm, 0.86 g ball at an impact velocity of 120 m/sT. The strength symbol followed by the letter T permits use at very high impact energy and extreme temperatures.Other symbols:K. Resistance to surface damage from fine particles N. Resistance to foggingLabelling of the frame: EN166 3 4 BTEN 166 : Ensure minimum resistance to common risks (falling, deterioration due to exposure to light, corrosion, heat, etc.)3. Drops or splashes4. Large particles > 5 microns.F. Low-energy impact, withstands a 6 mm, 0.86 g bullet at an impact speed of 45 m/sB. Medium energy impact, withstands a 6 mm, 0.86 g bullet at an impact velocity of 120 m/sT. The strength symbol followed by the letter T permits use with very high impact energy and at extreme temperatures.
Tip
PU:
Bag with 10 pairs
The cleanroom socks from P2C are reusable socks made from 100% polyester.
Material & properties
Material: 100 % polyester
Colour: white
washable up to 90
ISO 5
do not bleach
do not dry clean
hang dry
do not iron
Socks comply with category II of standard IEST-RP-CC-003.4
Packaging
10 pairs in a bag
5 bags in a box (50 pairs)
PU:
1 Piece
The Reusable Safety Goggles Univet #611.S0.00.01 offer direct ventilation. TheAF121 coating applied to the lens simultaneously guarantees protection against scratches and condensation and withstands up to 10 sterilisation cycles with steam.
Material & Properties
Lens material: polycarbonate
Frame material: Thermoplastic elastomers (TPE)
Headband material: antistatic silicone h 30 mm
Field of vision 220°
Thickness: 2.80 mm
Weight: 128 g
Lens colour: Transparent
Optical class 1
VLT: 89.7 %
UV protection: 380 nm
Base curve 5.0 spherical
Sterilisable in autoclave with steam
Frame made of special material that can withstand up to 40 sterilisation cycles
Replaceable lens ensures longer reusability of the full-vision goggles
All components made of anti-allergic material
Vision correction insert for prescription lenses available on request
New elastic headband made of anti-static material with QS system for quick and easy adjustment
Reference standard: EN166 EN170
Frame marking: U EN166 BT 2C-1.2 CE
Lens marking: 2C-1.2 U 1 BT K N CE
Packaging
5 pieces in a box
20 boxes in a carton (100 pieces)
PU:
1 Piece
Technical properties
Sterilisable in an autoclave with steam and with beta and gamma rays
Reusable. Up to 30 sterilisation cycles with steam in an autoclave at 121°C, 1 atm for 30 min. possible
Frame made of special material that can withstand a large number of sterilisation cycles
All components made of anti-allergic material
Overspecs
New elasticated headband made of antistatic material with QS system for quick and easy adjustment
Material TPE/PC/silicone
Tip
PU:
1 Piece
Available

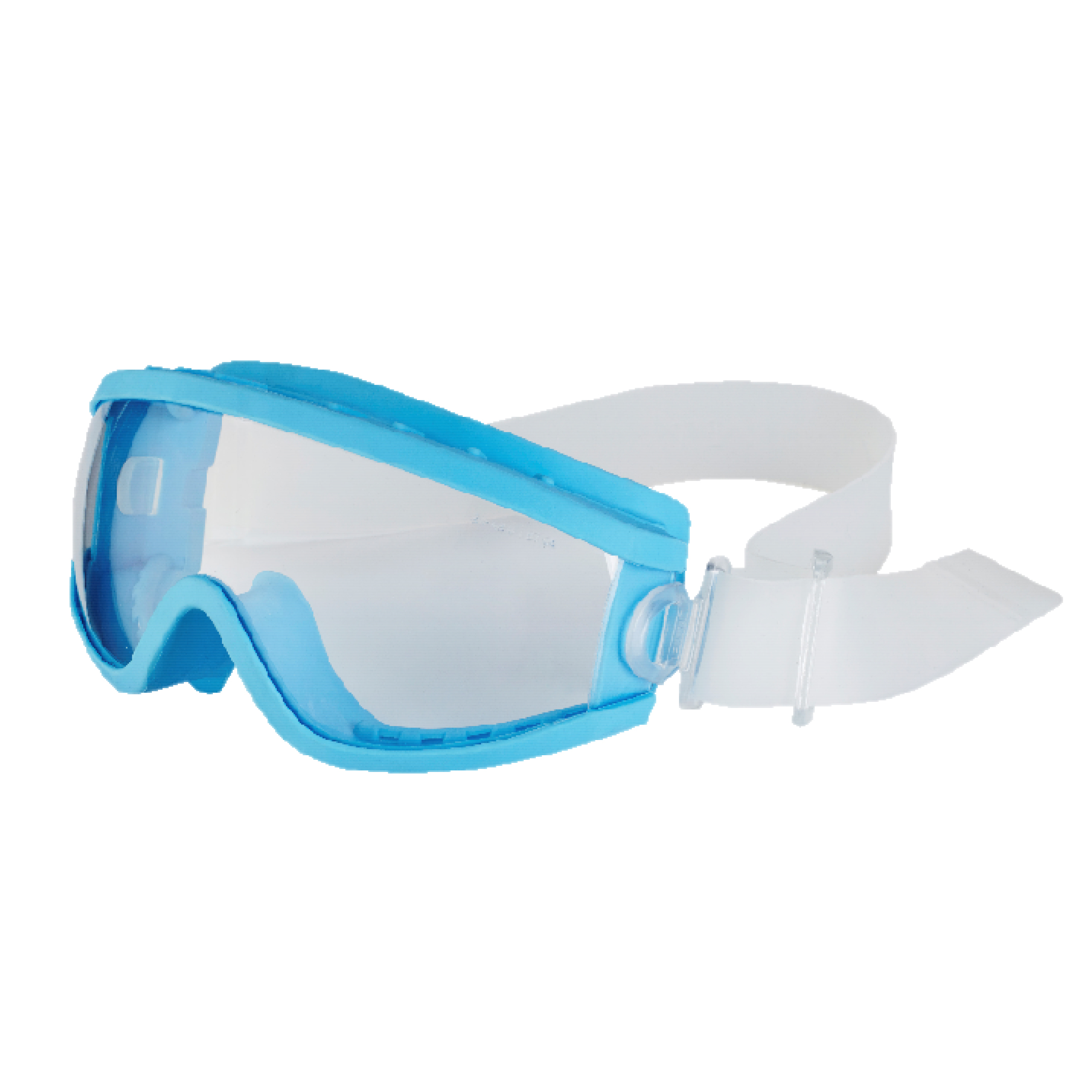

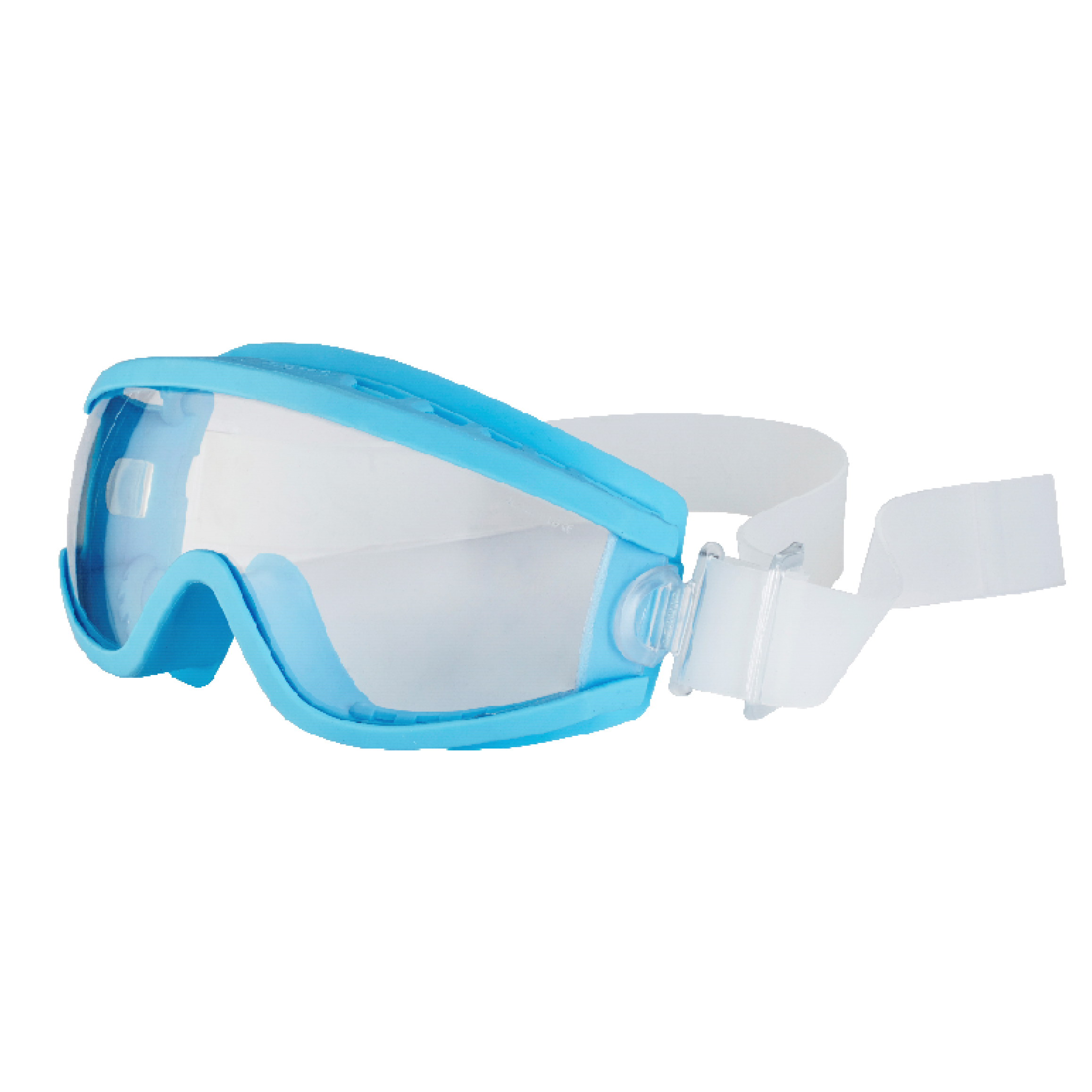

These goggles are designed for use in rooms with controlled contamination such as sterile and clean rooms.Among other uses, it is also used in aseptic conditions, including but not limited to the chemical, pharmaceutical, electronic industries or hospital laboratories. These goggles are designed to withstand multiple sterilisation in an autoclave without any noticeable changes. The careful design allows for long service life and maximum transpiration, offering a wide field of vision and use over all prescription eyewear.
Material & Properties
Material: Polycarbonate / Silicone
Lens thickness: 1.8 mm
Nose piece width: 50 mm
Nose piece height: 20 mm
Total width: 175 mm
Total height: 85 mm
Headband thickness: 2 mm
Headband width: 11.8 mm
Colour: blue / transparent
Sterilisable in autoclave under steam. Lens, frame and band are resistant to 40 cycles autoclave (121'C, 110kPa, 20min).
The lens is replaceable. The frame is made of thermoplastic rubber which remains stable even during multiple sterilisations
11.8 mm wide silicone strap with 2 mm thick adjustable strap length with a polycarbonate snap clip.
Wide panoramic field of vision made of impact-resistant polycarbonate, high-quality anti-fog lens
Indirect ventilation on the top of the goggles to protect against chemical splashes
Compatible or fits on most prescription glasses
Packaging
1 piece
Tip
PU:
1 piece
Size:
L
The reusable underwear trousers are ultra-light and breathable. They are made from lightweight micropolyester and have cuffs on the legs.
Material & properties
Material: 98% polyester / 2% carbon
Colour: blue
Pattern: Striped 5mm
Fabric: plain weave 1/1
Base weight: 93 g/m²
ISO 7
GMP C/D
Cleanroom fabric
Elasticated waistband and drawstring
Cuffs on the legs
Ultralight
antistatic
Packaging
individually packed in a bag
PU:
1 Piece
Available
Technical properties
Sterilisable in an autoclave with steam
Reusable. Up to 40 sterilisation cycles with steam in an autoclave at 121°C, 1 atm for 30 min. possible
Frame made of special material that can withstand a large number of sterilisation cycles
All components made of anti-allergic material
Vision correction insert for prescription lenses available on request
New elasticated headband made of anti-static material with QS system for quick and easy adjustment
Frame features
Ventilation: indirect
Protection against drops and splashes
Field of vision: 220°
Total weight in g: 128
Elastic headband: antistatic silicone h 30mm
Quality:
Cover standard: EN166 EN170
Frame: U EN166 3 4 BT 2C-1.2 CE
Lens: 2C-1.2 U 1 BT CE
Corrective insert
Article no. 601.OP.00.99
LENS PROPERTIES
Lens material: Polycarbonate
Lens colour: transparent
Coatings-
Thickness in mm: 2.25
Base curve5.0 spherical
Optical class: 1
VLT: 85.8 %
UV protection: 380 nm
Replacement lens
PU:
10 pairs per bag

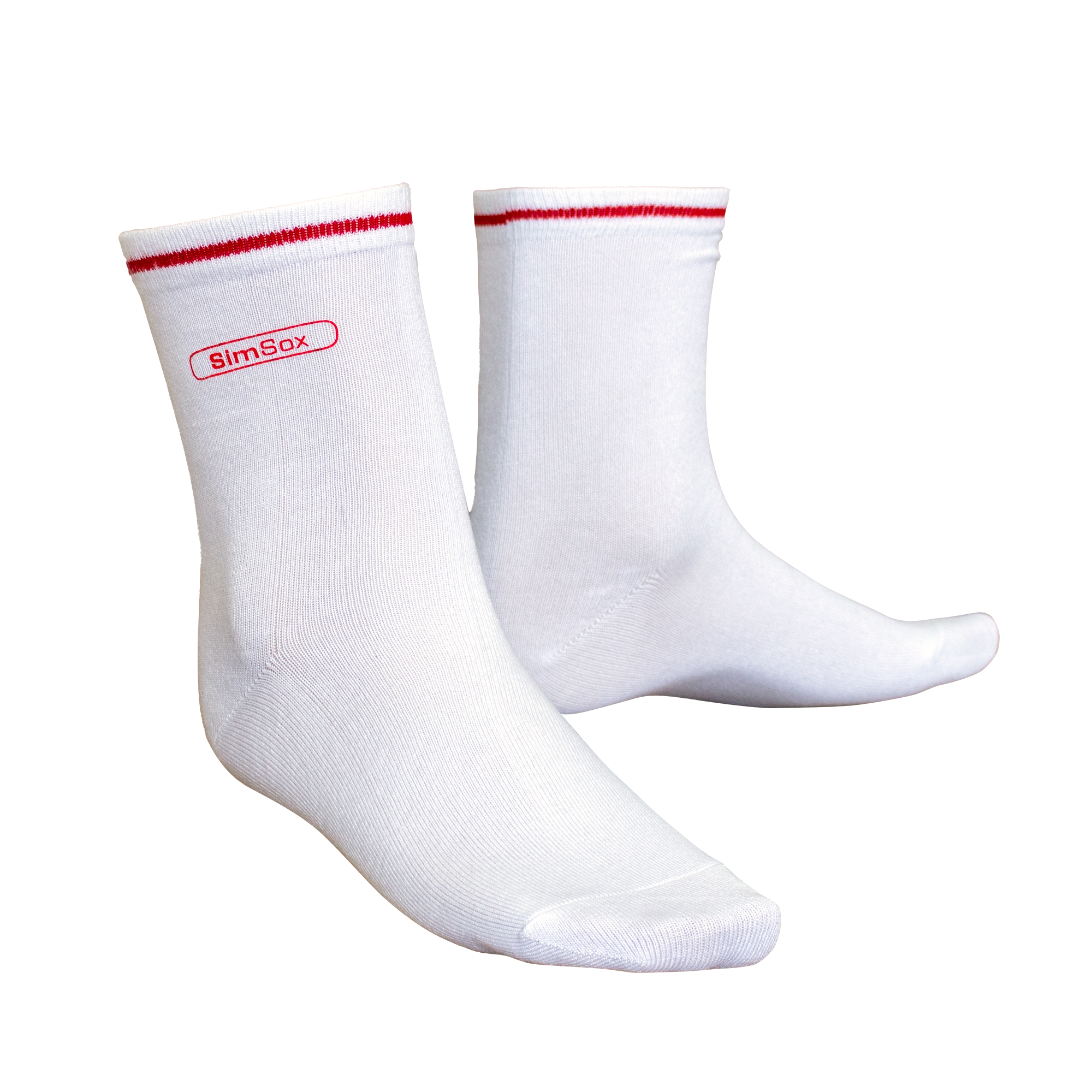

Maximum cleanliness meets sustainable reusability: our SimSox MW RR socks have been specially developed for use in cleanroom environments and offer maximum comfort while reducing the release of particles.
Specifications
Material 100% Polyester
Colour White with coloured cuff
Dimensions
Small (yellow lining): 19 cm x 19 cm
Medium (red lining): 21 cm x 21 cm
Large (blue lining): 23 cm x 23 cm
Particles
APC ≥ 0.5um sizes: 630 counts/pc.
Characteristics
Made from 100% Polyester
Cleaned and packaged in an ISO Class 5 cleanroom
Reusable cleanroom polyester socks with low particle emission
Lint-free, durable and washable
Elasticated cuff, soft and comfortable
Developed and manufactured for cleanroom applications
Compliant with EU GMP Annex 1 (7.14)
Coloured cuffs for easy size identification
Mashine washable up to 40°C
PU:
1 Pair
Available
Color:
White
|
Size:
S
Cleanroom overshoes (reusable overshoes) made of state of the art cleanroom fabric. High design with a firm non-slip rubber sole.
Material & Properties
Material: 98% Polyester / 2% Carbon
ISO 4 - 8
EU GMP A - C /US FED Std 10 - 100,000
Weight: 118 g/m²
Type of antistatic yarn: Negastat P210
Fabric: Twill 3/2
Pattern: Plaid 5mm * 5mm
2 colored straps with 2-piece buckle on front foot over instep, Different colors per size.
Combi P sole: TPU sole, gamma and ETO resistant. Excellent slip resistance.
Very high slip resistance.
With reinforced border from sole end to fabric.
Press studs and rubber at the top of the boot shaft
Fabric name: Alsistrong
Usage: clean room
Sterilization: Steam - Gamma
Breathability ISO 9237-2:1995: 18.10 l/m².s
Water tightness DIN EN ISO 11092:2014 Ret: 2,71 m²Pa/W
Tear strength ISO 13934/1:2013: warp 830 N / weft 1500 N
Abrasion resistance ISO 12947/2:1998: > 100,000 cycles
Decay time EN 1149-3: 0.01 sec
Surface resistance EN 1149-1: 10 exp6 Ohm
Particle retention: 0.3 µm = 98%, 0.5 µm = 98%, 5.0 µm = 98%
The reusable garment is made of lightweight micropolyester fabric.1. maximum washing machine load : 60 %.2. washing chemicals: anionic / non-ionic, preferably pure anionic agents with good dispersing properties.3. maximum pH: 8 - 8.5. close zipper and push buttons before washing.4. prewash: maximum 35°C - 10 minutes5. main wash: maximum 60°C - 15 minutes6. cool down 1°C per minute up to 50°C to avoid wrinkles7. rinse ( 2 x ) and neutralize with 1 cc/kg acetic acid 80%, 10 min at 40°C.8. last rinse: we recommend an antibacterial and antistatic detergent.9. dry gently and slowly.10. Tumble dry at a maximum temperature of 85°C.
Application
For optimal effectiveness: try to wear clothes as closed as possible and try to avoid air holes at the neck. Air formation in the clothing (blow-up effect) must be avoided. Have your cleanroom clothing decontaminated and washed in time to avoid contamination in the cleanroom. Cleanroom clothing is not water repellent and quickly absorbs water and chemicals. Small holes and tears should be repaired (patched) as soon as possible. Cleanroom clothing should not come into contact with solvents, chemicals, disinfectants and stain removers
Maintenace
The washing frequency depends on the working environment (microelectronics - pharmaceutical ...) and working conditions. The cleanroom garments should be washed in a cleanroom laundry. The maximum washing temperature is 60°C - Do not iron! The addition of chlorine is prohibited in the washing process. A thorough rinsing and neutralization. A PH- value between 5.5 and 6 should be achieved. If dry cleaning is required: only with perchloroethylene. When drying in a dryer, a low speed is recommended. Maximum shrinkage: less than 3%.
Packaging
1 pair
PU:
Bag with 6 Pairs
Available
BCR® cleanroom socks offer the next level of cleanroom foot health and operator comfort with regular and extended wear. They are made with 96% nylon and 4% Lycra microdenier technology. This technology and protection is not affected by washing. The micro-denier technology gives the sock an excellent feel and comfort. Due to the improved wicking function, contact discomfort is greatly reduced when wearing normal cotton or polyester socks.
Features
96% microdenier nylon and 4% double-coated Lycra
One size fits shoe size 5 to 11
Ambidextrous for easy stock control
Extremely soft and comfortable
BCR® cleanroom socks are more than 1,000 times cleaner than conventional cotton/polyester socks
Autoclavable
Colour: White
6 pairs per pack for individual use
Technology
Advanced technology for extreme moisture management
Manufactured using a special seamless technique, no-run and non-ravel
Designed and manufactured primarily for cleanroom applications and reuse
Does not lose fibres
Benefits
Reduced sock degradation during prolonged wear due to oils and perspiration
Long-lasting freshness and cooling for the operator
Odour reduction caused by foot perspiration
Provides softness of the polyester microdenier for operator comfort
Designed for all-day comfort
PU:
1 Piece
Die SUPERBLAST AUTOCLAVE Serie wurde speziell für alle Reinräume der Klassen A, B, C und D unter sterilen und unsterilen Bedingungen entwickelt. Ihr oberstes Ziel ist es, den Anwender vor den verarbeiteten Produkten zu schützen, aber auch die Produkte vor dem Anwender. Tatsächlich ist der menschliche Körper einer der größten Bereiche, der durch Mikroorganismen mit mehr als 30 Millionen Bakterien pro cm² Haut verunreinigt ist. Das Programm erfüllt in seiner Konzeption immer präzisere und technisch anspruchsvollere Anforderungen an den Reinraum. Diese Brille mit dem ultraweichen, thermoplastischen Gummirahmen bietet absoluten Komfort und optimalen Schutz in sensiblen und sterilen Umgebungen.
Ultrakomfortable autoklavierbare Schutzbrille
Rinne zum Flüssigkeitstransport
Einstellbares Kopfband
Über Korrekturbrillen tragbar
Ultra-belüftetes TPR-Gestell
Direkte Belüftung an der Oberseite
Dicht an der Unterseite
Polykarbonat-Scheibe
Platinum Beschichtung (kratzfest/Antibeschlag)
Tragen einer Atemschutz-Halbmaske möglich
Kennzeichnung der Gläser: 2C-1.2, 1 BT KNSymbole der optischen Klasse:1. DauerarbeitenSymbole für mechanische Festigkeit:B. Stoß mit mittlerer Energie, hält einer 6 mm großen und 0,86 g schweren Kugel mit einer Aufprallgeschwindigkeit von 120 m/s standT. Das Festigkeitssymbol gefolgt von Buchstabe T gestattet eine Verwendung bei sehr hoher Aufprallenergie und unter Extremtemperaturen.Andere Symbole:K. Beständigkeit gegen Oberflächenbeschädigung durch feine Partikel N. Beständigkeit gegen BeschlagenKennzeichnung des Gestells: EN166 BTEN 166 : Gewährleistung der minimalen Beständigkeit gegen übliche Risiken (Herunterfallen, Verfall durch Lichteinstrahlung, Korrosion, Wärme etc.)3. Tropfen oder Spritzer4. Große Partikel > 5 Mikron.B. Stoß mit mittlerer Energie, hält einer 6 mm großen und 0,86 g schweren Kugel mit einer Aufprallgeschwindigkeit von 120 m/s standT. Das Festigkeitssymbol gefolgt von Buchstabe T gestattet eine Verwendung bei sehr hoher Aufprallenergie und unter Extremtemperaturen.
Tip
PU:
1 piece
Available
Color:
Blue
|
Size:
XS
The reusable bonnet has press studs for attaching the face mask.
Material & properties
Material: 98 % polyester / 2 % carbon
Colour: white or blue
Weave structure: 3/2 twill
Base weight: 118 g/m²
Particle filtration 0.3µm / 0.5 µm
ISO 4
EU GMP A - C /US FED Std 10 - 100,000
With press studs at the front
2 press studs for attaching face masks
Press studs at the back of the head
Pattern: Chequered 5mm * 5mm
possible sterilisation methods: Steam autoclave, gamma irradiation
Beta irradiation, ETO: steam - gamma
Breathability ISO 9237-2:1995: 18.10 l/m²
Water impermeability DIN EN ISO 11092:2014 Ret: 2.71 m²Pa/W
Tear strength ISO 13934/1:2013: warp 830 N / weft 1500 N
Abrasion resistance ISO 12947/2:1998: > 100,000 cycles
Decay time EN 1149-3: 0.01 sec
Particle retention capacity: 0.3 µm=98%, 0.5 µm=98%, 5.0 µm=98%
The reusable garment is made of lightweight micropolyester fabric
Maximum washing machine load: 60 %
Washing chemicals: anionic / non-ionic, preferably pure anionic agents with good dispersing properties.
Maximum pH value: 8 - 8.5. Close the zip and press studs before washing.
Pre-wash: Maximum 35°C - 10 minutes
Main wash: Maximum 60°C - 15 minutes
Cool down 1°C per minute to 50°C to avoid creasing.
Rinse ( 2 x ) and neutralise with 1 cc/kg acetic acid 80%, 10 min at 40°C.
Last rinse: We recommend an antibacterial and antistatic detergent.
Dry gently and slowly.
Tumble dry at a maximum of 85°C
Application
For optimum effectiveness: Try to wear the clothing as closed as possible and try to avoid air holes at the neck. Air formation in the clothing (blow-up effect) must be avoided. Have your cleanroom garments decontaminated and washed in good time to avoid contamination in the cleanroom. Cleanroom garments are not water-repellent and quickly absorb water and chemicals. Small holes and tears should be repaired as quickly as possible (patches). The cleanroom garments should not come into contact with solvents, chemicals, disinfectants and stain removers
Maintenance
The washing frequency depends on the working environment (microelectronics - pharmaceuticals ...) and the working conditions. The cleanroom garments should be washed in a cleanroom laundry. The maximum washing temperature is 60°C - Do not iron! The addition of chlorine is prohibited in the washing process. Thorough rinsing and neutralisation. A pH value between 5.5 and 6 should be achieved. If dry cleaning is necessary: only with perchloroethylene. A low speed is recommended for tumble drying. Maximum shrinkage: less than 3 %
Packaging
1 piece
PU:
1 piece
Available

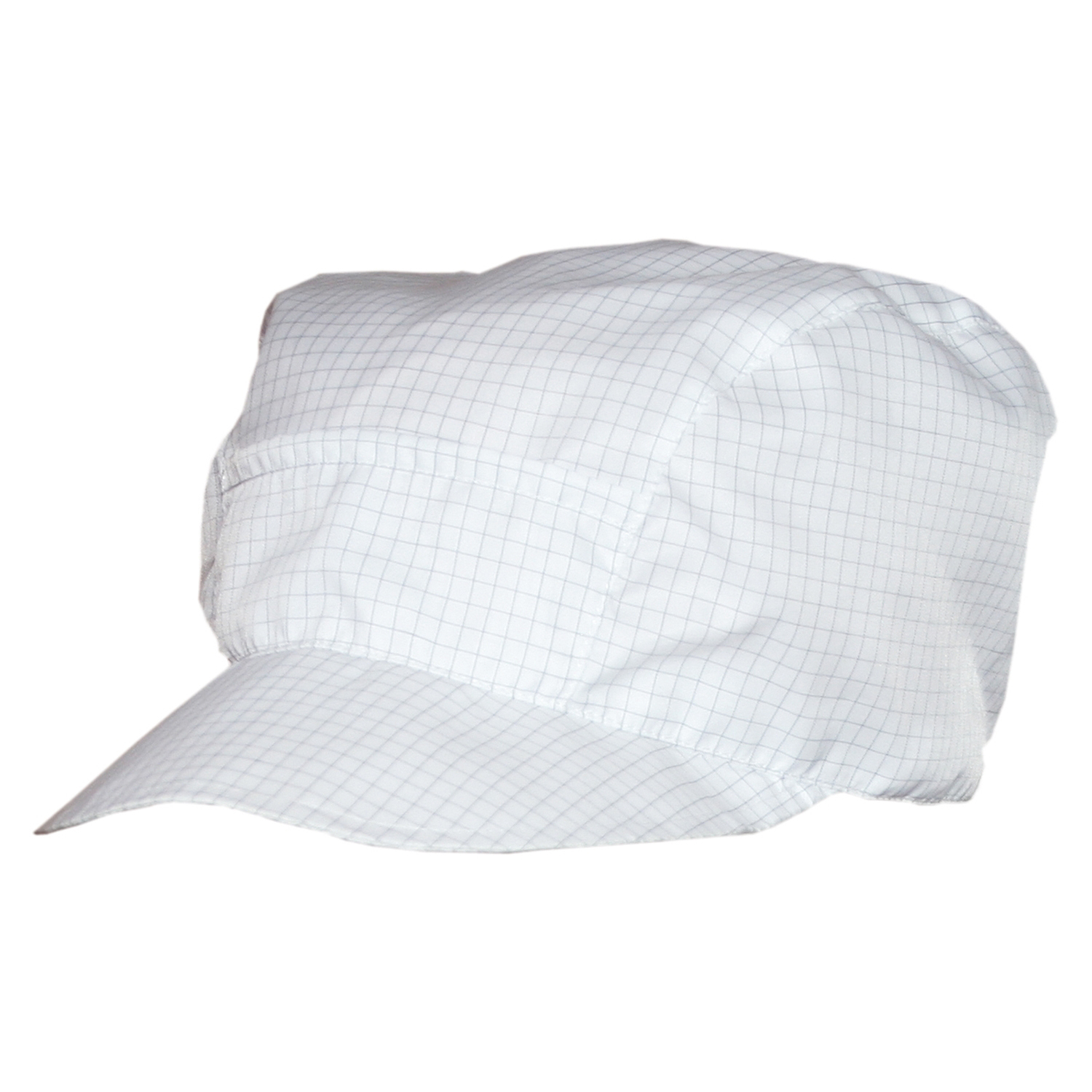

Cleanroom peaked cap with rubber and flap
Standard version:
Cleanroom fabric
elasticated back
Colour: White, checkered
One size fits all
PU:
1 piece
The autoclavable Cleanroom Full Protection Goggles BioClean Clearview BCAG have a super soft frame made of thermoplastic rubber with an indirect ventilation system that provides high wearing comfort and reduces the risk of contaminants entering the controlled. These safety glasses ensure a clear view through hardened, scratch-resistant polycarbonate lenses.
Material & Properties
Material: Thermoplastic rubber
Width: 190 mm
Height: 85 mm
Depth: 85 mm
Glass thickness: 3,1 mm
Colour: white
ISO 4
GMP A
CAT II
Autoclavable
Super soft frame
Indirect ventilation through openings at top and bottom
Toughened, scratch-resistant and optically correct polycarbonate glass
Lint- and latex-free headband
Tested to withstand > 40 autoclave cycles of 30 minutes at 121°C
Anti-fog performance is maintained (under laboratory conditions) for up to 25 cycles without degradation.
Can be worn over corrective spectacles
Packaging
1 piece in a sealed PE bag (must be removed before autoclaving)
12 PE bags in an carton
PU:
1 Piece
Available
The Reusable Safety Goggles Univet #611S10001 Antifog are full-vision goggles that can be sterilised with steam in an autoclave. The coatingAF121 applied to the lens guarantees protection against scratches and condensation at the same time and withstands up to 10 steam sterilisation cycles. Replaceable lens ensures longer reusability of the full view goggles.
Material & Properties
Material: Polycarbonate
Lens thickness: 2.25 mm
transparent lens
Anti-fog coating
anti-scratch coating
Curvature: base 5.0 Ciyindrical
Optical class: 1
VisibleLight Transmittance: 89.7%.
ProtectionUV: 380 nm
Ventilation: indirect
Protection against drops and liquid splashes.
Frame material: TPR
Field of vision: 220°.
Weight of the entirePE (g): 128
Rubber strap: antistatic silicone h 30 mm
Up to 40 sterilisation cycles possible with steam in autoclave at 121°C, 1 atm for 30 min.
Frame made of special material that can withstand up to 40 sterilisation cycles.
Replaceable lens ensures longer reusability of the full-face goggles
All components made of anti-allergic material
Vision correction insert for prescription lenses available on request
New elastic headband made of anti-static material with QS system for quick and easy adjustment
Reference standards: EN166 EN170
Frame marking: U EN166 3 4 BT 2C-1.2 CE
Lens marking: 2C-1.2 U 1 BT K N CE
Packaging
5 pieces in a box
20 boxes in a carton (100 pieces)
